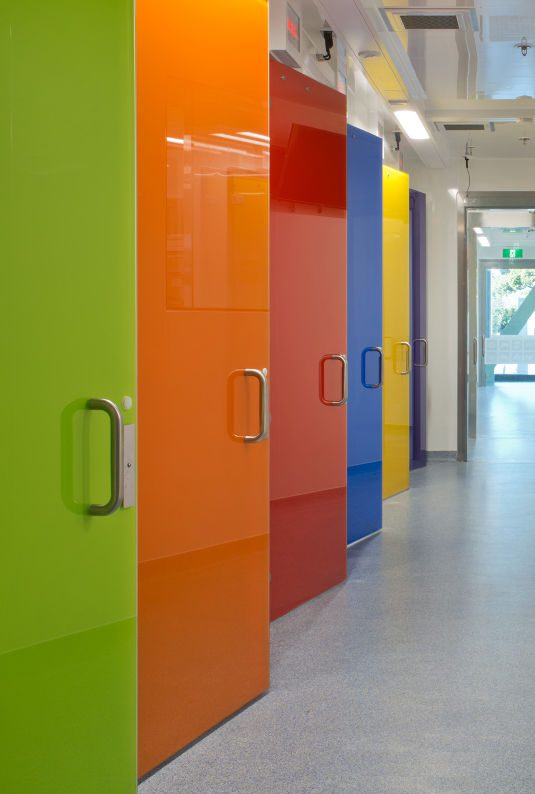

Glass Door AR-Dg

PBSC’s cleanroom glass doors, also referred to as laboratory doors, hospital doors, healthcare doors, NHS doors, and medical doors create a showpiece appearance to any facility and provide ideal functionality.

The cleanroom doors from PBSC play a crucial role in maintaining the integrity of controlled environments by preventing the entry of contaminants and are designed to meet stringent cleanliness and hygiene standards required in industries such as pharmaceuticals, biotechnology, electronics manufacturing, and healthcare.

Available with PBSC’s unique concealed closer system. Uniquely developed to include a single closer arm in solid stainless steel and a closer sealed into the door frame. Which in turn eliminates the ledges and the difficult-to-clean arms.

• Full wrap-around shroud in stainless or powder-coated options
• 10mm frameless tempered glass door leaf
• Solid stainless-steel hinge with 170° opening capability
• Custom frame sizes for specific wall thicknesses
• Flush maglock in frame with maximum clear opening
• Concealed or surface-mounted door closer options

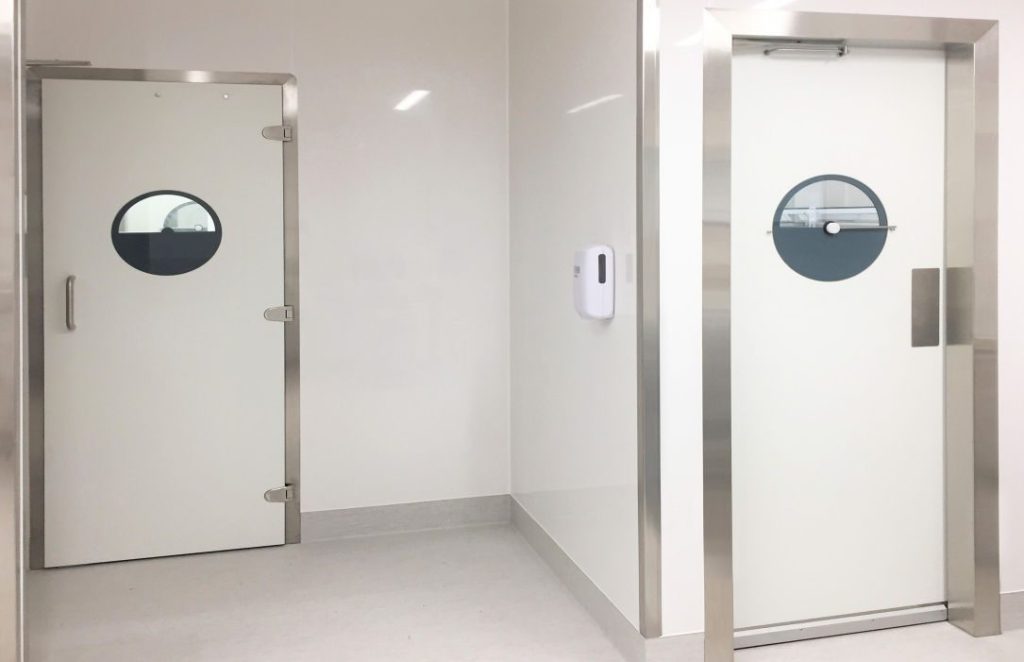

Phenolic Resin Door AR-Dp

PBSC’s Phenolic Resin Door sets (also known as Hospital Doors, Cleanroom Doors, NHS Doors, and Chemical Grade Doors) are expertly designed for demanding environments such as laboratories, cleanrooms, and corrosive settings.

Engineered with a solid core of chemical-grade phenolic resin, these doors offer superior durability and resistance to chemicals and cleaning agents. Unlike metal doors, they feature a seamless, cavity-free construction that prevents contamination ingress, ensuring optimal hygiene standards.

• Excellent resistance to corrosive chemicals
• High impact resistance
• Solid core door leaf
• Stainless-steel hinges opening to 170°
• Flush glazed vision panels
• Flush maglock in frame
• Concealed closer system available

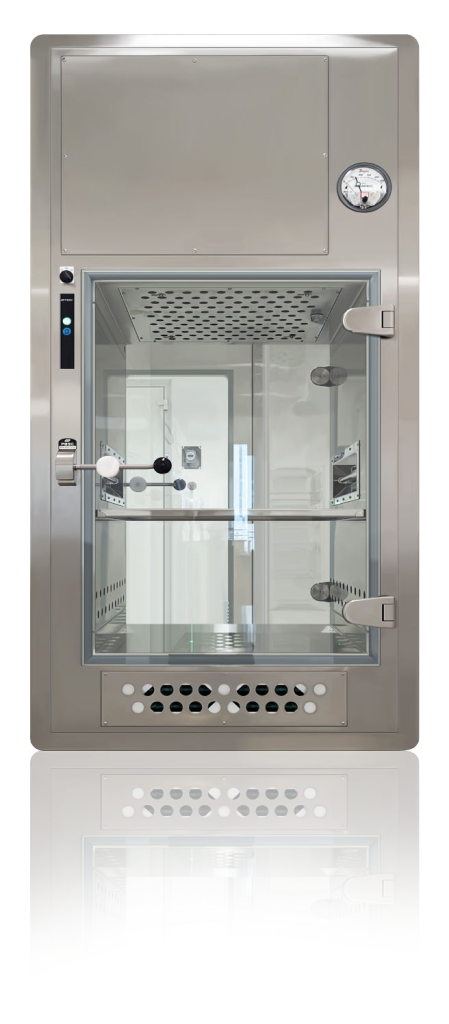

Fan Filter Pass Through Hatch – AR-FFU

A fan filter pass through hatch is a specialised cleanroom component designed to facilitate the safe transfer of materials between areas of differing cleanliness standards.

By utilising fan filter pass through hatches, facilities can ensure that the transfer of materials between cleanroom areas is conducted safely and efficiently, maintaining high standards of cleanliness and contamination control.

PBSC’s Fan Filter pass through hatch is designed to provide rapid air changes and fast clean-up/recovery times to reduce the waiting time when transferring goods between different room grades. The system is designed to work without any connection to the building’s HVAC system and utilise the air from the adjacent rooms, reducing the costs of HVAC systems and making it ideal for refurbishments.

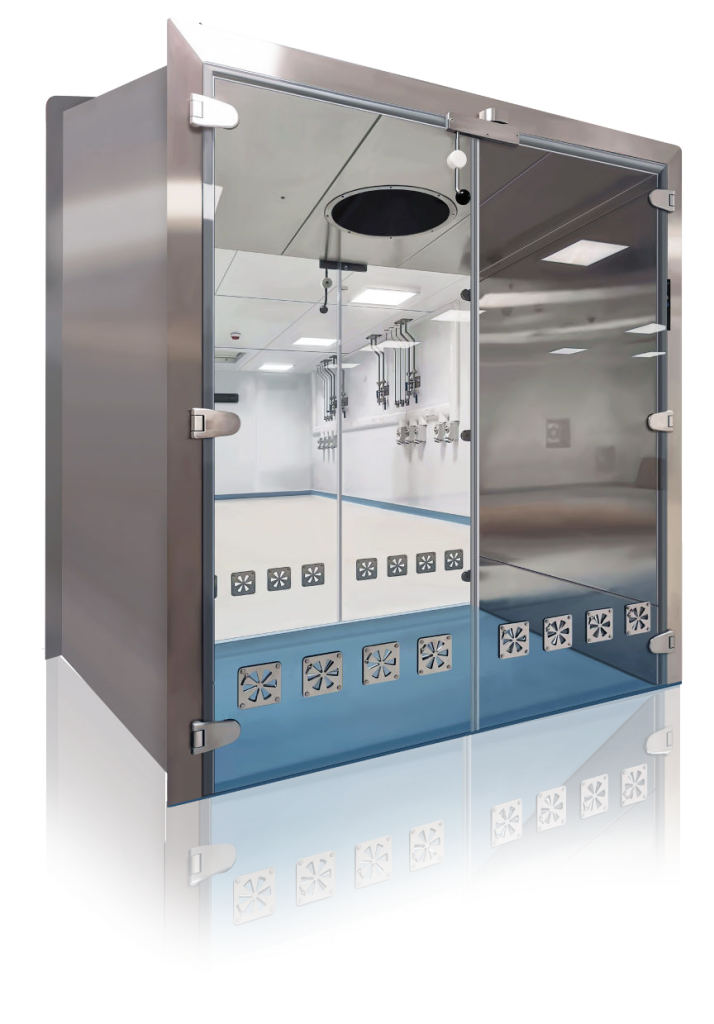

Floor / Trolley Pass Through Hatch AR-Ht

PBSC’s cleanroom trolley pass-through hatch, also known as a floor mounted hatch, pass box, pass chamber, or pass through is engineered for the secure and efficient transfer of trolleys and large equipment between different cleanroom and controlled environments.

Being one of the best on the market, constructed from high-quality stainless steel, the hatch features smooth surfaces for easy cleaning, an interlock system for contamination control, and customisable options to fit your facility’s specific needs.

Ideal for cleanrooms, laboratories, and hospitals, the trolley pass through hatch ensures that large items can be moved safely and efficiently without compromising environmental integrity.

Designed with a larger opening to accommodate trolleys, carts, or large equipment, fixed directly to the finished flooring, providing a clean and uninterrupted floor through the hatch.

• Robust mechanical interlock as standard
• Stainless steel or phenolic resin construction
• Minimal visible fixings
• Robust PBSC cast stainless-steel hinge assemblies
• Toughened glass door leafs
• Easy clean surfaces
• Frameless glass door leaf providing maximum visibility
• Reduces cross contamination

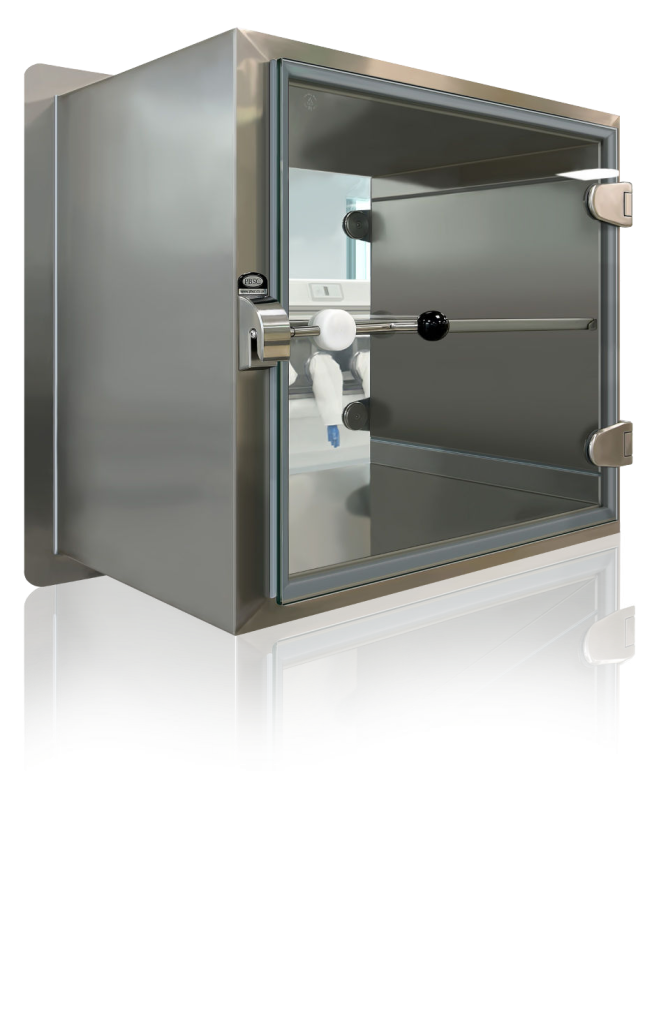

Wall Mounted Pass Through Hatch AR-H

PBSC’s transfer hatches, also known as a pass box, pass chamber, or pass through, are among the best on the market.

These hatches help reduce the risk of physical movement or transfer of harmful bacteria and pressure loss when transferring equipment between different classification areas, within cleanrooms, or in controlled environments.

The hatches from PBSC are designed for easy cleaning and maintenance, making them great for passing products, equipment, or even paperwork between sterile and non-sterile areas while preserving the integrity of each environment.

Effective sealing is crucial to prevent the exchange of air and contaminants between the two environments connected by the pass through hatch. PBSC’s interlocking mechanism ensures an airtight seal when the door is closed.

• Robust mechanical interlock (standard)
• Stainless-steel or phenolic resin construction
• Minimal visible fixings
• Cast stainless steel hinge assemblies
• Toughened glass door leaves
• Easy-clean surfaces

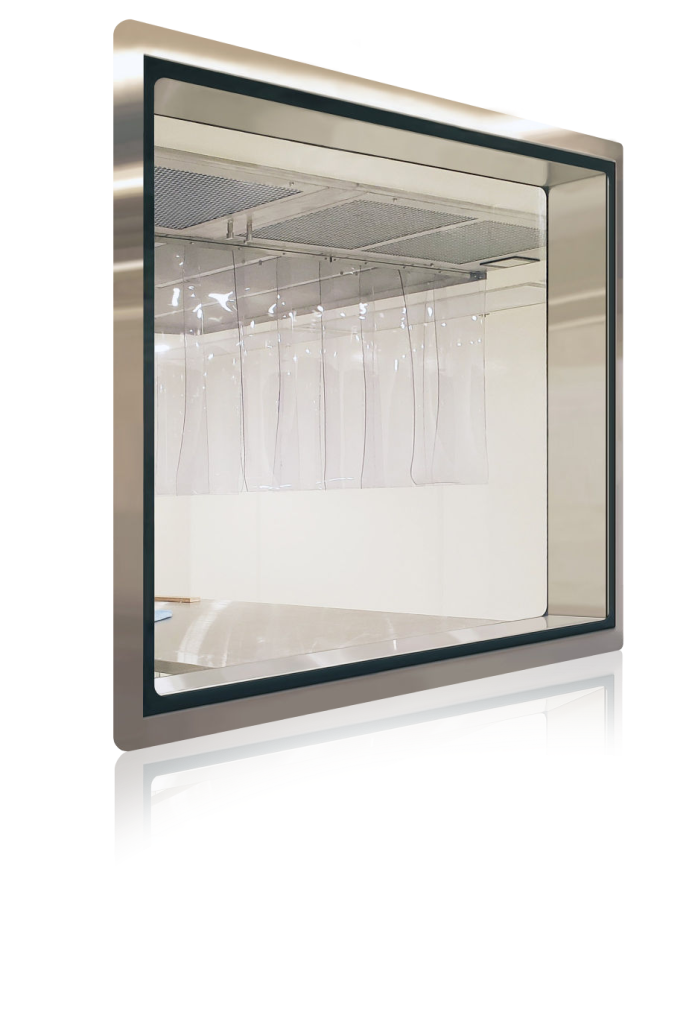

Double Glazed Vision Panel AR-V

A cleanroom vision panel, also known as a cleanroom observation window or viewport, is a specialized component designed for cleanroom environments.

It allows occupants or observers to visually inspect processes, equipment, or personnel inside the cleanroom without compromising the controlled environment.

PBSC’s standard double-glazed cleanroom vision panel provides a flush-glazed finish within a polished stainless-steel architrave.

With many of PBSC’s engineered products, the glazed screen has no visible fixings to either side, aiding attention to detail within cleanroom technology.

• Flush glazed vision panels to both sides
• Overlapping flanges to both sides of the opening
• Screen printed borders, bonded to the glass
• Customisation to fit wall thickness

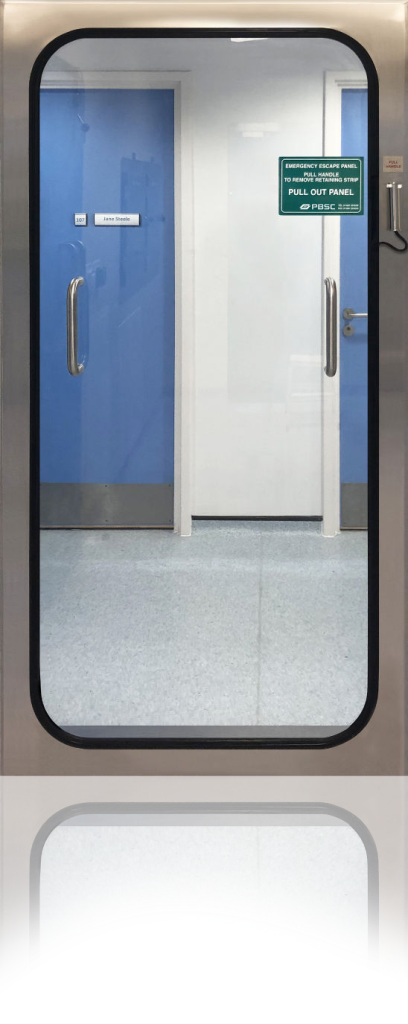

Emergency Escape Panel AR-BOP

PBSC’s cleanroom escape panel is also commonly known as a breakout panel, a service access panel, a cleanroom door, an escape door, BOP, or a kick out panel.

It provides a quick escape and safe exit from a cleanroom or containment-controlled environment. It is often used as a removable window that can be easily removed for equipment access routes during planned shutdowns.

• Made to suit finished wall thickness
• Flush wrap-around frame on both wall sides
• Welded and polished stainless-steel construction
• Custom engineering solutions available
• Stainless-steel assembly and pull handles
• Low leakage rates
• 304/316L stainless steel or powder-coated options
• Pull or push configurations
• Clear or opaque acrylic panels
• Escape capability from both sides

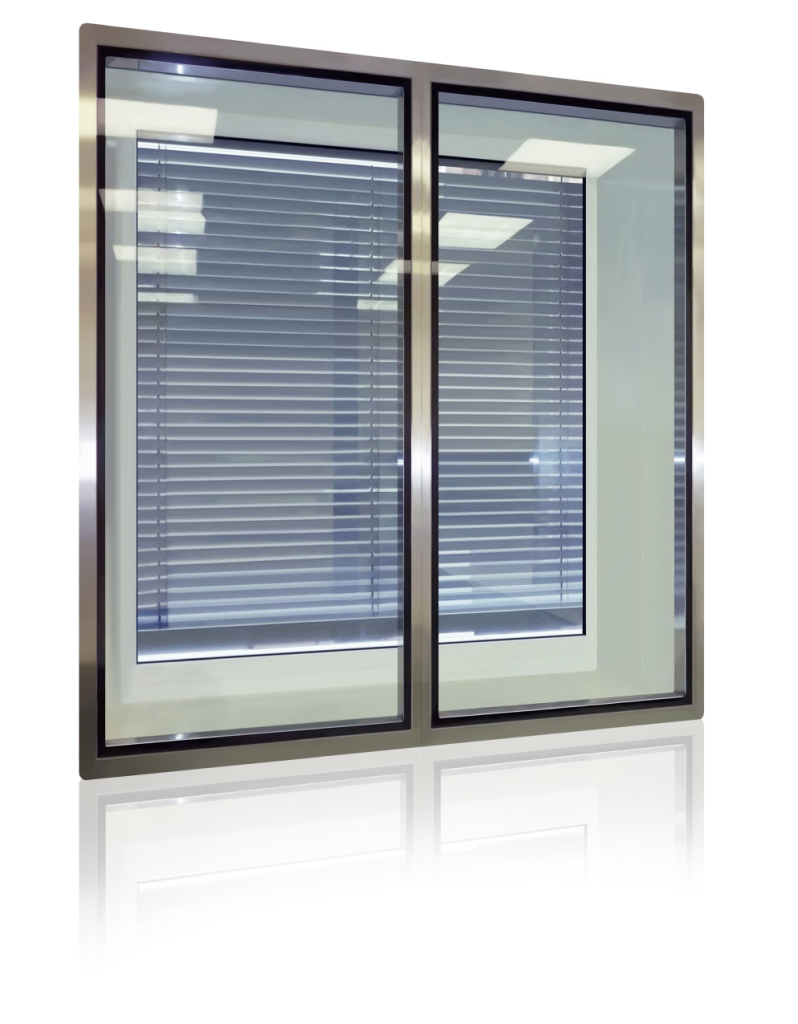

Secondary Glazed Vision Panel AR-Vs

PBSC’s secondary glazed cleanroom vision panels are designed to provide flush glazing to the inside of any facility where standard external windows are on the exterior of the building.

These panels ensure no visible fixings on either side, allowing for meticulous attention to detail and maintaining a clean, sterile environment.

Ideal for facilities where visibility is critical, these panels are an essential component of cleanroom technology, enhancing both functionality and aesthetics.

• Flush glazing
• Overlapping flanges to finish the opening
• Screen printed borders bonded to the toughened glass
• Made to fit into various sizes and depths to the external window
• No visible fixings

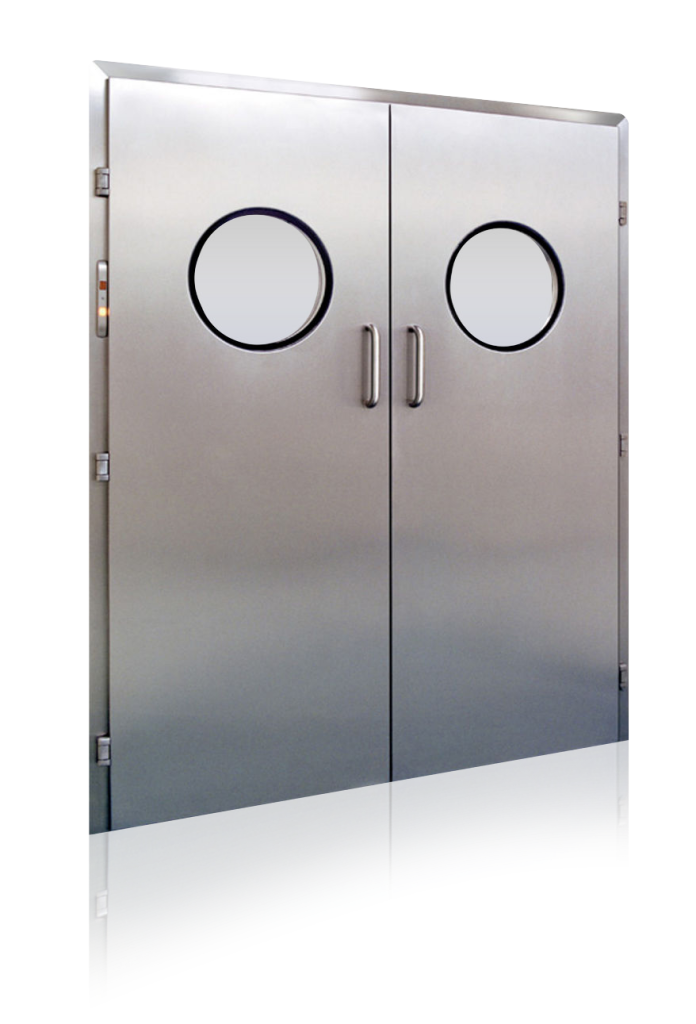

Steel Door Set AR-Ds

PBSC’s cleanroom steel door sets (also known as Hospital Doors, Cleanroom Doors, Laboratory Doors, NHS Doors, APR Doors and Healthcare Doors) are engineered to meet the highest standards of hygiene and functionality.

Making them an essential component in maintaining contamination control across various industries such as pharmaceutical, biotechnology, and electronics manufacturing.

As one of PBSC’s original door sets, specifically engineered for cleanroom environments, it has proven its enduring value through precision design, exceptional quality, and long-lasting durability.

• Sturdy 3-piece framework system
• Welded and polished frame construction
• Unique PBSC cast stainless steel hinge assembly
• Custom frame width for site-specific walls
• 1.6mm stainless steel leaf in 240 grit finish

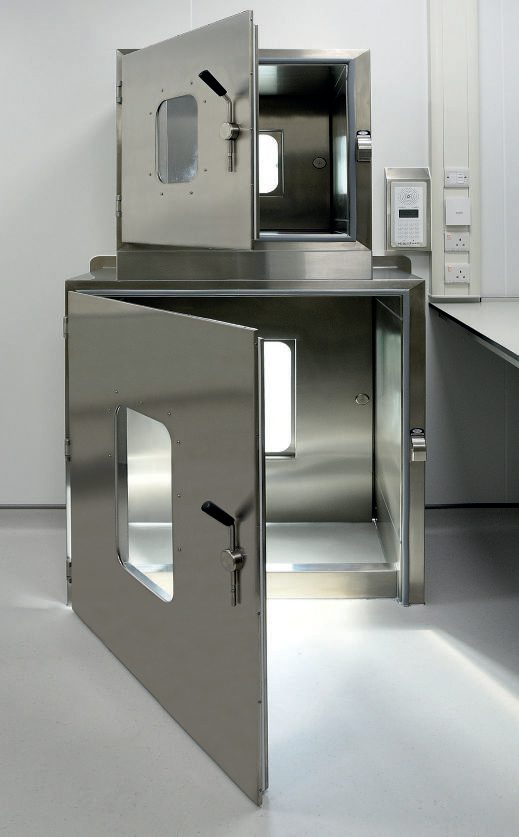

Fire Rated Pass Through Hatch AR-Hf/Tf

The fire rated pass through hatch from PBSC is a specialized hatch used to transfer materials between different areas in a facility while maintaining fire resistance and contamination control.

It is also known as a fire rated cleanroom pass through box, fire rated pass through window, fire rated chamber, fire rated box, or fire rated cleanroom hatch. This hatch is crucial in environments where fire safety is a priority, such as laboratories, cleanrooms, and industrial facilities.

When a pass through needs to be installed in a firewall, PBSC can provide a wall or floor mounted option with stainless steel door leaves featuring vision panels.

Tested to BS 476 part 22, with integrity certification from 60 to 90 minutes.

• Robust mechanical interlock system
• Solid stainless-steel hinge assemblies
• Easy clean surfaces
• Test certification to BS 476 part 22, up to 90 minutes integrity
• Wall or trolley mounted
• 30 minutes insulation properties
• Used in a broad range of applications
• Custom sizes

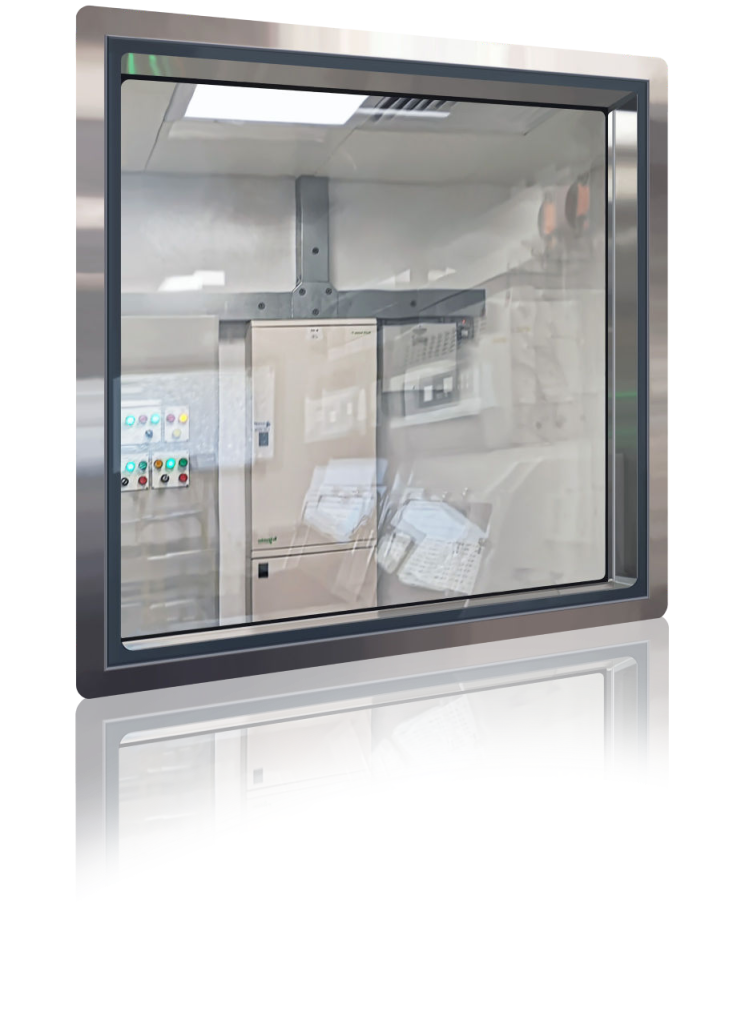

Fire Rated Vision Panel AR-Vf

PBSC’s fire rated vision panel, also known as a lab window, hospital window, and cleanroom observation panel, provides a flush-glazed finish with a polished stainless-steel architrave.

The clear fire glass is clamped between the two outer panes of toughened glass, providing a flush finish with no visible fixings to either side.

Providing up to 90 minutes of insulation and tested to BS 476 Part 22.

• Flush glazed vision panels to both sides
• Clear fire glass construction
• Overlapping flanges to both sides
• Screen printed borders bonded to glass
• Adaptable for various wall thickness

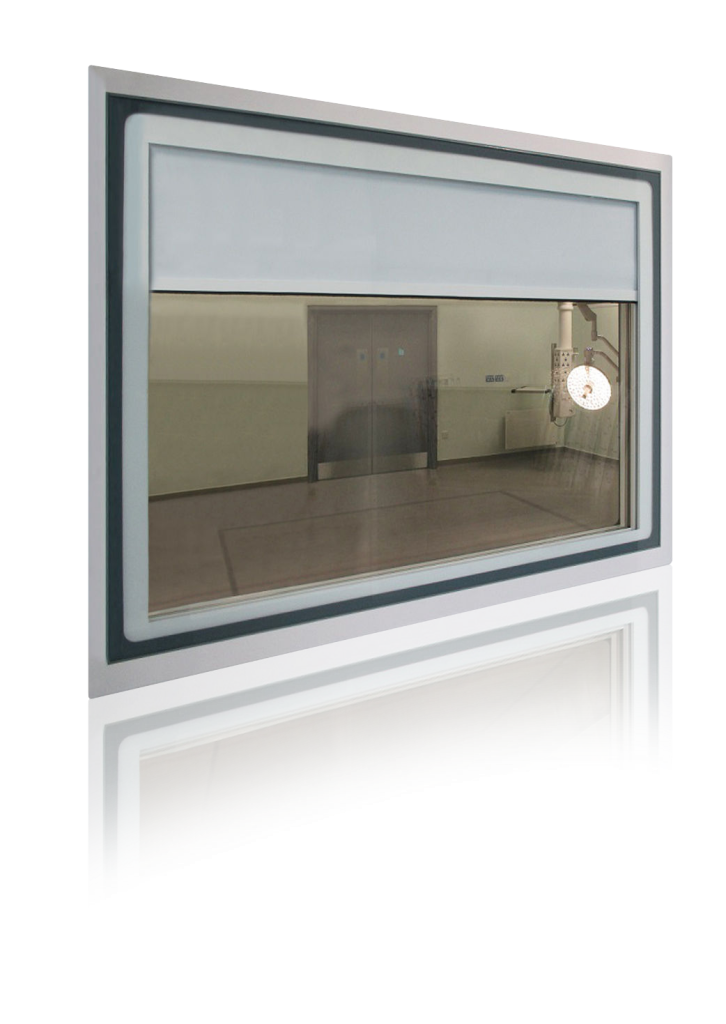

Lead Shielding Vision Panel AR-Vl

PBSC offers lead shielding vision panels designed for environments requiring radiation protection.

These panels provide a clear view while ensuring reduction from radiation exposure, making them ideal for use in medical and research facilities where radiation is present.

The design maintains the aesthetic and functional qualities of PBSC’s standard vision panels, with the added benefit of lead shielding to meet specific safety requirements.

In keeping with the clean and flush designs from PBSC, the lead shielding glazed screens have flush glazing in polished stainless-steel architraves and no visible fixings to either side. Providing up to 12mm lead equivalency and can be provided for different applications including code 5, code 6, code 7, etc.

• Flush glazed vision panels to both sides
• Fire rated version available
• Flanges to finish structural opening
• Screen printed borders
• Fits various wall thicknesses
• Up to 12mm lead equivalency

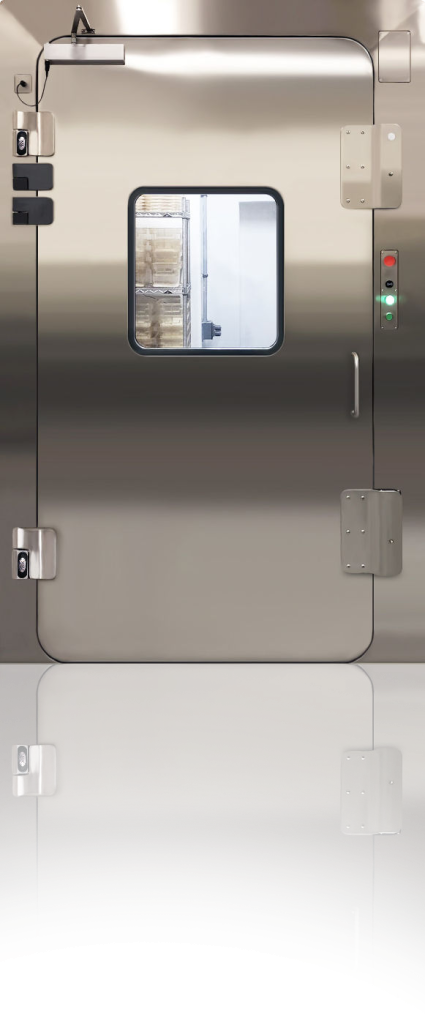

APR Inflatable Seal Door Set HC-ISD

PBSC’s APR pneumatic inflatable seal door set, also known as a containment-controlled door, airtight door, airtight containment door, hospital door, laboratory door, and cleanroom door, provides airtight containment for areas with frequent traffic and wheeled equipment, such as hospitals, laboratories, and cleanrooms.

The airtight containment door frame is flush with the floor, eliminating obstacles and trip hazards.

PBSC’s airtight door set is constructed mainly for containment-controlled facilities worldwide, such as BSL3 and BSL4 laboratories.

• High leakage resistance across the complete door set
• Monitoring of seal pressure
• Monitoring of supply pressure from building
• Unique PBSC cast stainless-steel hinge assembly
• Stand-alone PLC controls available
• Door leaf construction options
• Silicone or EPDM inflatable seal
• Hydraulic or automatic door closers
• Configurable button sets and LED indicators
• Flush glazed vision panels — toughened or laminated glass
• Designed to install into a range of wall types

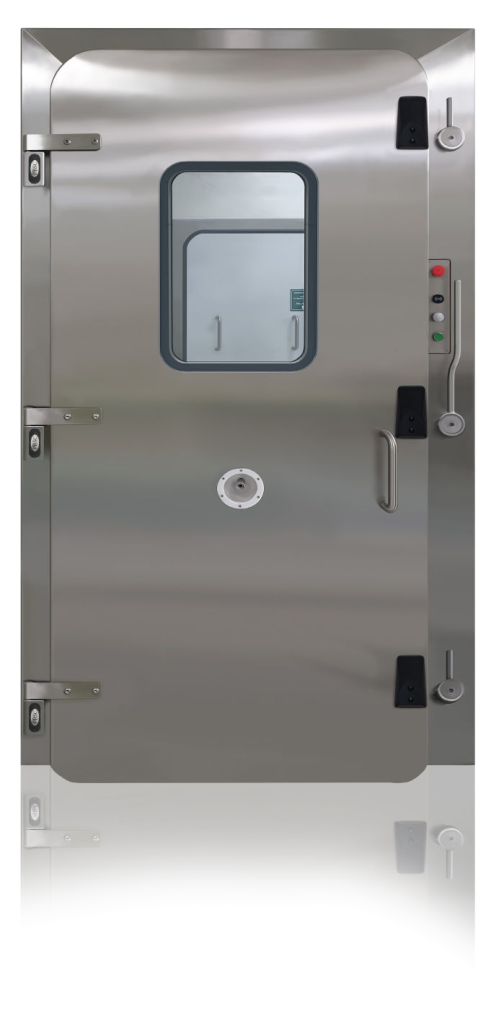

Mechanical Seal Door Set HC-MSD

PBSC’s APR Mechanical Seal door sets for high containment facilities are designed to create a reliable airtight barrier.

Also known as High Containment Doors, Hospital Doors, Lab Doors, Laboratory Doors, Stainless Steel Doors, APR Doors, and Cleanroom Doors. The airtight barrier is achieved by using a robust yet flexible seal that is manually compressed against the doorframe. The seal doesn’t need compressed air, making it a fail-safe option in case of a power outage.

The Mechanical Seal Door Sets designed by PBSC work for all containment applications, with stainless-steel and machined HPL door leaves as options. Both door leaves are tested up to 2500PA (10” W.G.). The door set can be connected to an access control system if required.

• Easy one-handed operation, with 3-point compression
• Mechanism mounted in door frame for robust design
• Stainless steel or solid core HPL door leaf
• Flush glazing to both sides
• Configurable button sets and LED indicators
• Robust, fail-safe design
• Low maintenance
• Tested to 2500Pa (10" W.G.)

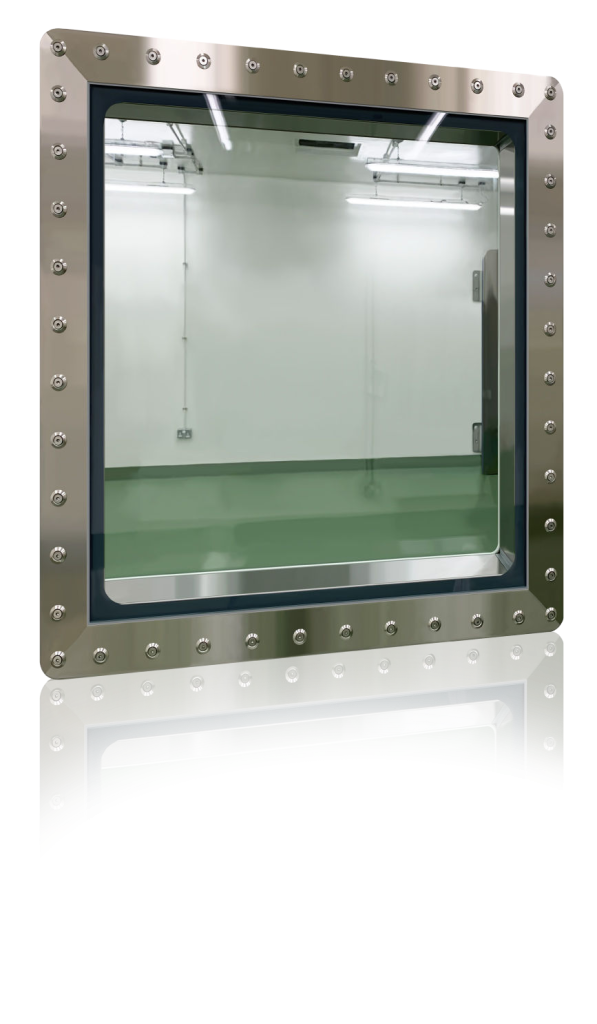

APR Vision Panel HC-Vd/s/f

PBSC provides a variety of vision panels that combine functionality with an attractive design, enhancing the aesthetics of your facility.

The high-containment APR vision panel, also known as a Hospital Window, Window Panel, High Containment Panel, Lab Window, and APR Vision Panel, is available in Double Glazed, Single Glazed, and Fire-Rated options, featuring a polished stainless-steel frame. It is securely sealed to the wall with a compression gasket for optimal performance. Additionally, PBSC offers window systems finished with structural silicone, ensuring a seamless and professional wall integration.

PBSC’s vision panels are designed for versatile installation into cast concrete, concrete block, or stud walls. To ensure optimal performance, pressure test points are included for quick and easy verification of the gasket seal integrity.

Extensive test data, detailing performance under pressure differences of up to 2000 Pa, is readily available from our technical department.

• Flush glazing (double glazed version)
• Simple pressure testing
• Double glazed to provide redundancy for sealing
• Polished stainless-steel frame
• Typical pressure loss at SAT of 38Pa over 30 minutes, from a starting pressure of 500Pa

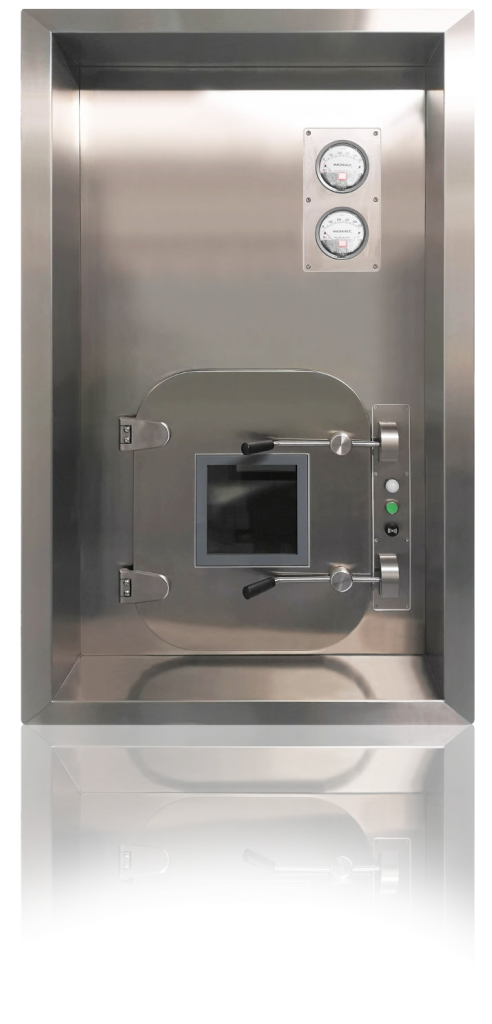

APR Barrier Hatch HC-BH

PBSC’s range of room-to-room hatches provide reliable interlocked door transfer routes and are custom designed to address a wide range of applications; from non-containment environments right up to the most rigorously controlled BSL4 laboratories.

Wall-mounted versions are ideal for small hand-held items and our floor-mounted hatches are designed to handle larger items and carts.

Transfer Hatches are available in polished stainless steel with a fully welded construction. All models feature reliable PBSC door interlocks and proven door hinges and seals.

Venting and chamber conditioning may be provided and fully welded gas-tight duct connectors / HVAC ball valve dampers are available.

PBSC’s hatches are available with either an inflatable or mechanical seal door design. Both provide excellent levels of containment.

• High leakage resistance, suitable for BSL4 applications
• Monitoring of seal pressure
• Monitoring of supply pressure for building
• Pneumatic seal and mechanical seal models
• Maglock or electro-mechanical interlock
• Range of control panels, can be prepared for integration into BMS
• Air purge and UV lights available
• Highly reliable and easy to clean
• Unique PBSC cast stainless steel hinge assembly allowing maximum clear opening
• Flush glazed vision panels with no visible fixings

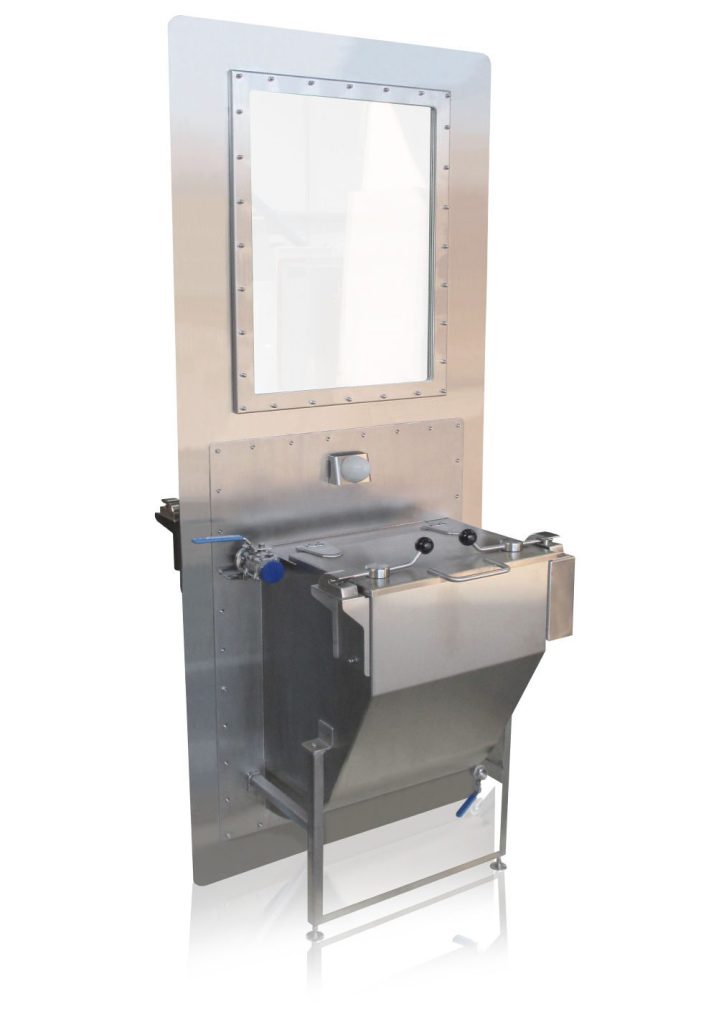

High Containment Chemical Dunk Tank

Where decontamination of small-scale items is needed PBSC produces a dunk tank system for installation on the containment barrier.

The dunk tank serves as a specialised pass-through system for transferring goods between sections of a cleanroom or biology laboratory, using liquid disinfection to ensure effective sterilisation.

The chemical dunk tank is specifically designed for use in BSL3 and BSL4 biosafety laboratories.

Based on the classic design, the PBSC dunk tank — also known as a High Containment Tank, Decontamination Tank, Hydrogen Peroxide Chamber, Barrier, and Containment Barrier — features stainless steel lids (mounted on cast stainless steel hinges). Within the tank, a hinge-down submersion plate is provided to ensure items are held below the surface of the neutralizing chemical liquid.

The dunk tank can be manually locked during shut down with the doors providing a barrier seal without the fluid in the tank.

• Suitable for BSL3 and BSL4 containment barriers
• Air tight performance from lids without liquid
• Mesh transfer system
• Design solutions for stud, block, or cast concrete walls
• Reliable decontamination for small-scale items
• Options: internal lighting, liquid level sensor, pneumatic interlock with PLC controls
• Options: side sink, vision panel, clean side gassing ports

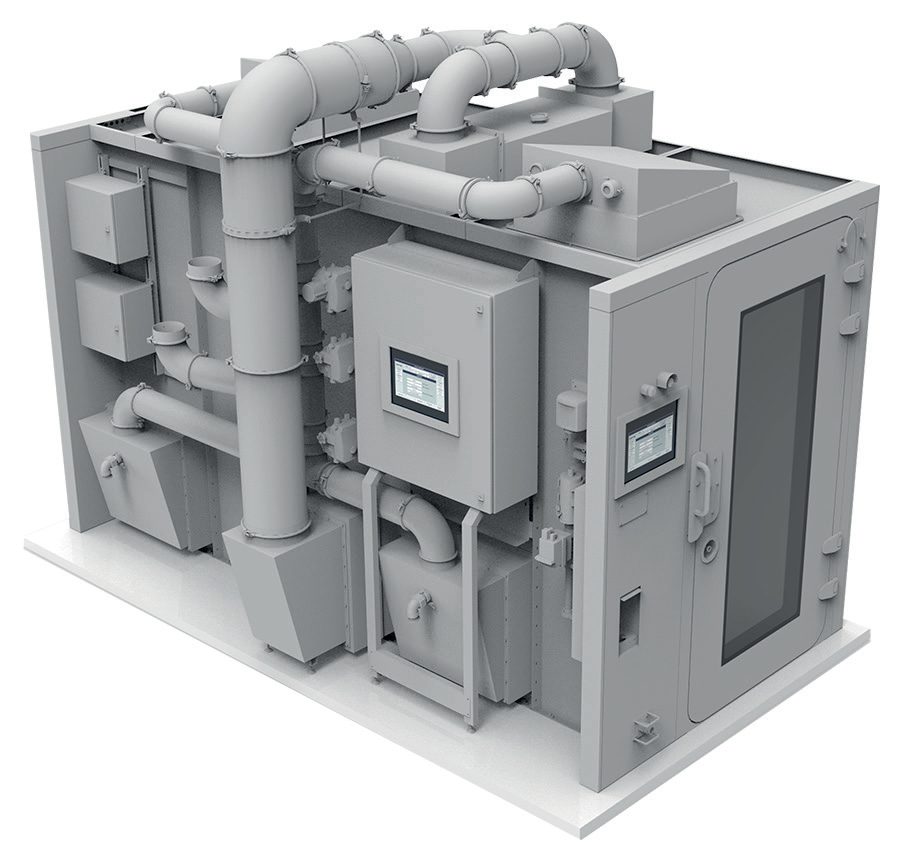

Decontamination Chamber Integrated MD-Ci

PBSC’s high-level Log6 surface disinfection chamber is a modular design, ideal for material production environments and equipment loads in cleanroom and high containment environments up to BSL4, with a fully integrated decontamination solution utilising market-leading H₂O₂ generator manufacturers ensuring regulatory compliance and consumable traceability.

The chamber is intuitive, allowing ease of use for facility operators.

Effective against a wide range of microorganisms and viruses, the HPV decon chamber provides a low heat decontamination solution for heat-sensitive items such as laptops and biologic preparations. The decontamination chamber is a crucial addition to a facility process philosophy for material transfer into or out of the critical environment.

The decontamination cycle is initiated via the colour touch screens on either side of the chamber, which provide operators with in-cycle data from the chamber and H₂O₂ generator.

With this integrated chamber, the hydrogen peroxide generator can be either integrated internally on the unit or remotely mounted in the building’s technical area. Both options have a remote bottle housing and printer mounted on the chamber. Custom integration to a multi-room decontamination system is available.

The chamber includes either an S7-1200 or S7-1500 PLC with Ethernet data communication.

Various chamber sizes with pneumatic seal doors are available, from 1m x 1m up to 3m x 5m (W x D).

• Fast cycles from 45 minutes
• Log6 decontamination
• Data acquisition for 21 CFR Part 11 and Annex 11 compliance
• Internal power sockets for electrical items during fumigation
• H2O2 bottle housing
• Flush Maglock with hidden proximity
• Onboard printer
• Colour Touch Screen
• Large vision panel with flush glazing
• Plug and play electrical spares
• Flush threshold for wheeled access

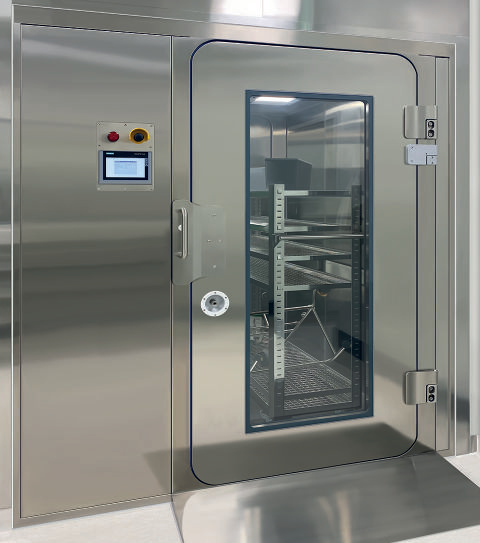

Decontamination Chamber MD-C

PBSC’s high-level Log6 surface disinfection chamber with a mobile generator is a freestanding modular unit ideal for material production and equipment loads in cleanroom and high containment environments up to BSL4.

The generator is mobile allowing it to be used on other equipment and room decontamination.

PBSC provides decontamination solutions from market leading H₂O₂ generator manufacturers ensuring regulatory compliance and consumable traceability. The chamber is intuitive allowing ease of use for facility operators.

The decontamination cycle is initiated via the colour touch screens, which are located on either side of the chamber, providing operators with in-cycle data from the chamber and H₂O₂ generator.

Effective against a wide range of microorganisms and viruses, the HPV disinfection chamber provides a low heat decontamination solution for heat-sensitive items such as laptops and biologic preparations. The chamber is a crucial addition to a facility’s process philosophy for material transfer into or out of the critical environment.

The chamber includes either an S7-1200 or S7-1500 PLC with Ethernet data communication.

Various chamber sizes with pneumatic seal doors are available, from 1m x 1m up to 3m x 5m (W x D).

• Fast cycles from 45 minutes
• Log6 decontamination
• Siemens S1200 or S1500 PLC
• Flush Maglock
• Colour Touch Screen
• Stainless-steel hinges with concealed air supply
• Tacho monitored fans
• Large vision panel, double glazed
• Flush threshold allowing easy wheeled access
• Full service support contracts available

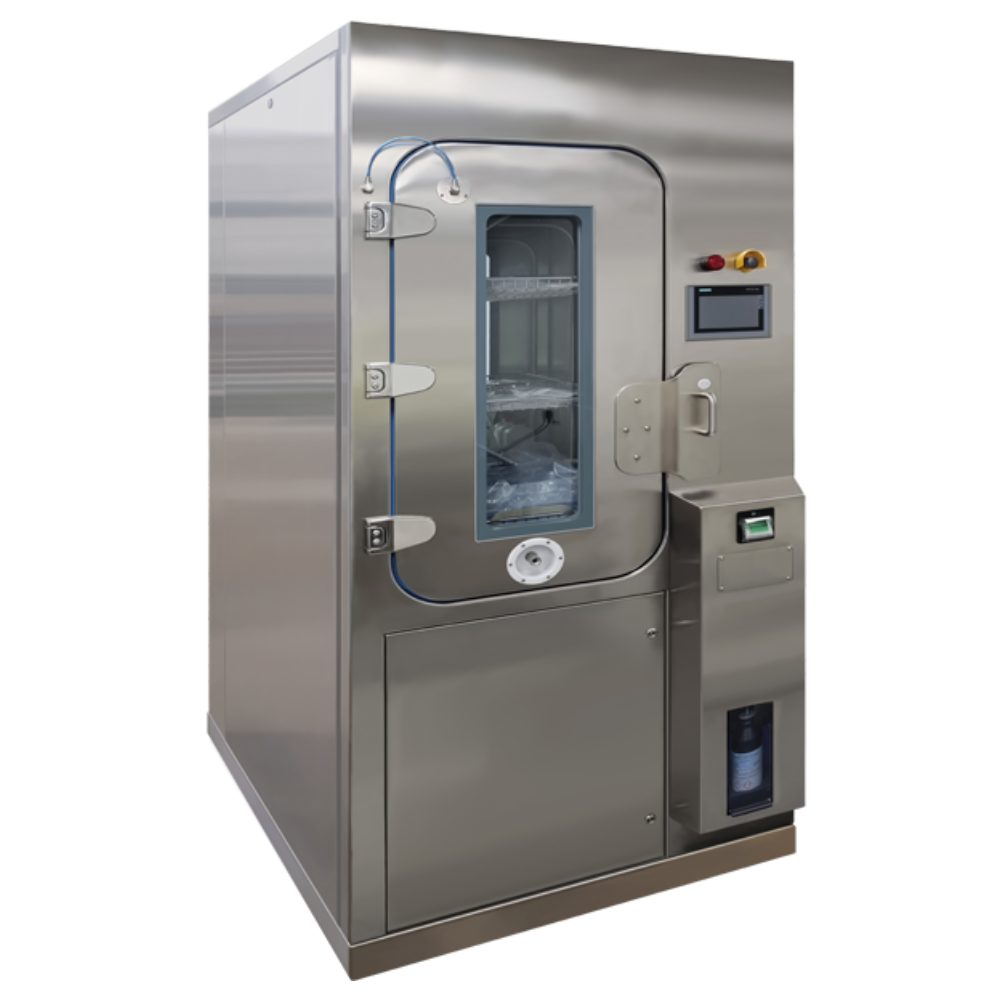

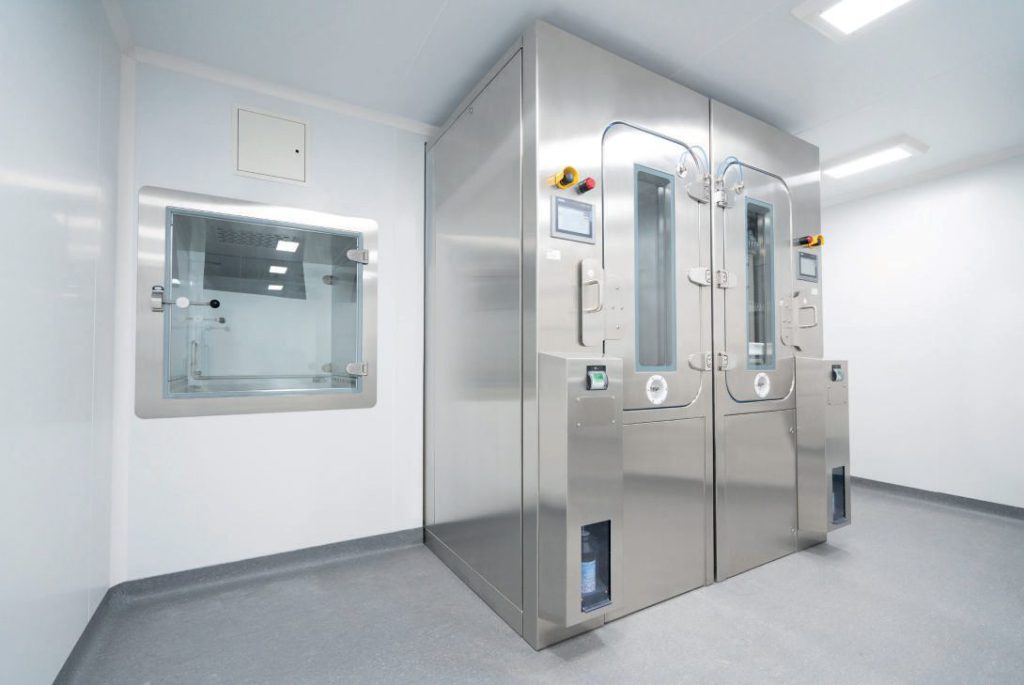

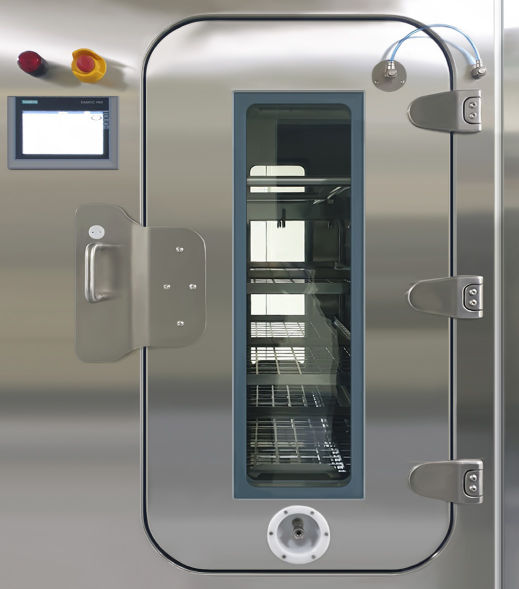

Decontamination Hatch Integrated MD-Hi

PBSC’s high-level Log6 surface disinfection hatch is a freestanding unit, ideal for material production and equipment loads in Bio-Medical, Biopharma, and High Containment environments.

The fully integrated HPV solution provides fully integrated decontamination solutions from market-leading H₂O₂ generator manufacturers to ensure regulatory compliance and consumable traceability.

The decontamination cycle is initiated via the colour touch screens available on each side of the hatch, providing operators with in-cycle data from the hatch and VHP™ generator.

PBSC’s integrated hatch gives a low heat decontamination solution for heat-sensitive items such as laptops or biologic preparations. Effective against a wide range of microorganisms and viruses, the decontamination hatch is a crucial addition to a facility’s process philosophy for material transfer into or out of critical environments.

On the MD-Hi model, the hydrogen peroxide generator is integrated on the hatch or in the building’s technical area. Both options have a bottle housing and printer mounted on the chamber. Custom integration to a multi-room decontamination system is available.

The hatch includes an S7-1200 or S7-1500 PLC with Ethernet data communication, which monitors and records all critical parameters of each cycle.

Various hatch sizes with pneumatic seal doors are available, from 2’ x 4’ up to 4’ x 5’ (W x H).

• Decontamination cycle times from 30 minutes
• Log6 decontamination
• Data integrity compliance
• Full-service support contracts available to suit GMP and Life Science facilities

Decontamination Hatch MD-H

PBSC’s high-level Log6 surface disinfection hatch is a freestanding unit, ideal in Bio-Medical, Bio-Pharma, and high containment applications.

PBSC provides decontamination solutions from market-leading H₂O₂ generator manufacturers to ensure regulatory compliance and consumable traceability. Having a mobile decontamination generator allows use on other equipment and for room decontamination.

The hatch is designed to be intuitive allowing ease of use for facility operators.

The decontamination cycle is initiated via the colour touch screens on either side of the hatch, providing operators with in-cycle data from the hatch and VHP™ generator.

Effective against a wide range of micro-organisms and viruses, the HPV hatch provides a low heat decontamination solution for heat-sensitive items such as laptops, or biologic preparations. The decontamination hatch is a crucial addition to a facility’s process philosophy for material transfer either into or out of the critical environment.

The hatch includes either an S7-1200 or S7-1500 PLC with Ethernet data communication, which monitors and records all critical parameters of each cycle.

Various hatch sizes with pneumatic seal doors are available, from 2’ x 4’ up to 4’ x 5’ (W x H).

• Decontamination cycle times from 30 minutes
• Log6 decontamination
• Siemens S1200 or S1500 PLC
• 7", 12" or 15" Comfort Touch Screens
• Data acquisition for 21 CFR Part 11 and Annex 11 compliance
• Standard sizes: 600 x 1200 x 1100mm or 900 x 1200 x 1100mm

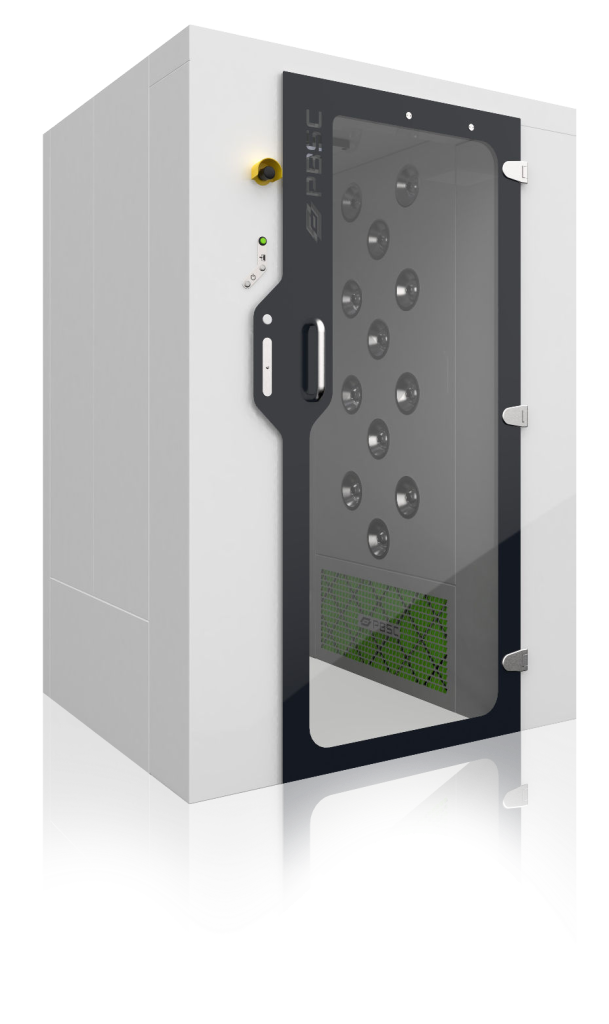

Air Shower Integrated AHU PD-Ai

An air shower is a specialised chamber designed to reduce contaminants from people or objects before entering a cleanroom or controlled environment. It is an essential component in cleanroom facilities where maintaining a controlled and sterile environment is critical.

Air showers are commonly used in industries such as pharmaceuticals, biotechnology, electronics manufacturing, and semiconductor fabrication, where maintaining cleanliness and controlling contamination is essential.

When the shower cycle is started by the operative, the shower controls lock the doors and run the fans to provide the airflow. (Note the shower has a low power usage with a highly efficient fan.)

PBSC’s personnel air shower, also known as an air shower room, air shower safe chamber, cleanroom air shower, and misting shower, comes in two designs:

• With the integrated Air Handling Unit (AHU) on the top of the shower
• With a separate AHU that has “Safe Change” filters

Both options remove particles from the operative with high-velocity air jets. The integrated unit is designed to remove non-hazardous particles on entry into a controlled area.

The air shower is the latest design from PBSC which has been continually improved over the years and features either stainless-steel or powder-coated steel construction with interlocked float and toughened glass personnel doors. The shower has the final assembly in place and requires no cranes or special access on-site as the largest piece will fit through a single doorway.

Maximum clear opening — the door design has been refined to provide a maximum clear entry width with the frame finishing flush with the internal panels (straight-through design only).

There are 9 adjustable stainless-steel nozzles on both side walls, 18 nozzles in total.

As the operative enters the shower, the PLC automatically turns on the high-performance 24VDC LED light, which is powered by the PLC (no mains power in the shower cubicle).

The system is available with a range of control panel options. The standard is a Siemens Logo, which can be provided with an Allen Bradley PLC or a Siemens S1200 PLC. The S1200 PLC comes with a touch screen in the shower (or on the PLC cabinet) to show the shower status alarms, which can be seen and cleared from the screen.

• PLC controlled internal 24VDC LED light
• High velocity from nozzles
• Adjustable stainless-steel nozzle, no performance loss with different positions
• Efficient power use, only 10A, 1Ph required (110 or 230V)
• Frameless glass door sets — maximum clear opening
• PBSC concealed closer system
• PBSC solid stainless-steel hinge
• Tinted toughened frameless glass
• Airflow 1080 m3/hour
• Glass 10mm toughened to BS 6206A

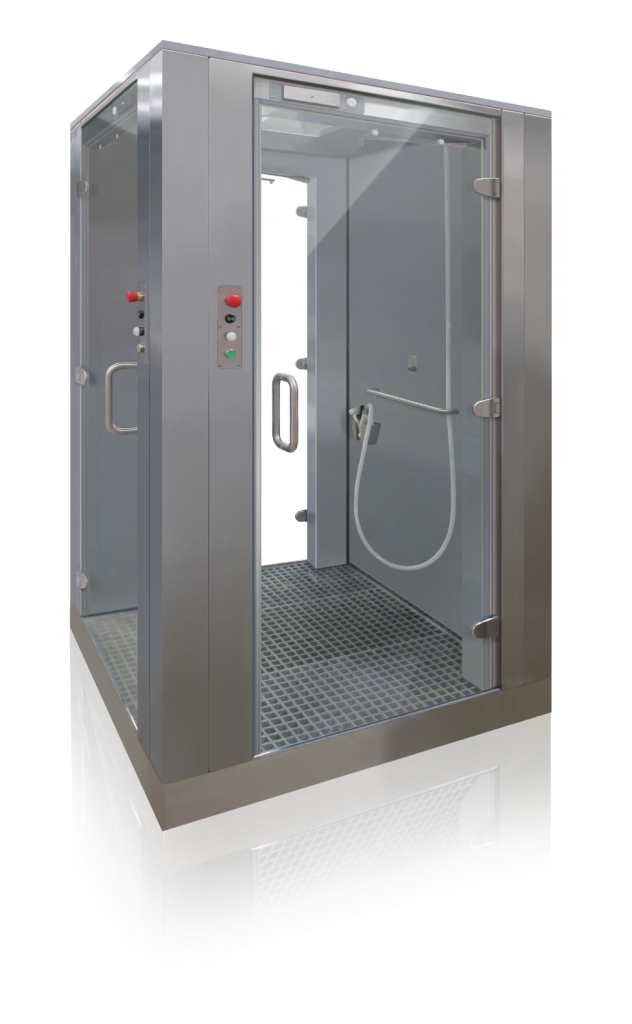

Fogging Shower PD-F

PBSC’s Ultrasonic Fogging Shower provides encapsulation or removal of powder from an operative’s suit and is assessed by SafeBridge Consultants Inc.

Also known as a Fog Shower, Mist Shower, Ultrasonic Shower, Personnel Shower, Decontamination Shower, Misting Shower, Personnel Decontamination, Chemical Shower, and a Decon Shower.

The PBSC fogging shower — chemical shower cycle uses 5 to 10-micron water droplets to encapsulate API particles with minimal wetting through the operator’s PPE suit.

Reductions in surface concentrations can be up to 800 times less than the starting contamination levels. Airborne particles around the operative and during de-gowning are also significantly reduced.

The system is available with a range of PLCs, with standard options of a Siemens LOGO PLC (with the option of a remote ‘TDE’ PLC screen if required) or a Rockwell (Allen-Bradley) MLX1100 PLC with PanelView 800 HMI 4” colour touchscreen.

• SafeBridge assessment on performance
• Efficient water usage to minimise liquid waste
• Air and water pressure monitoring by PLC
• Frameless glass door sets
• User-adjustable cycle stage timers
• PLC controlled LED light
• Emergency override buttons
